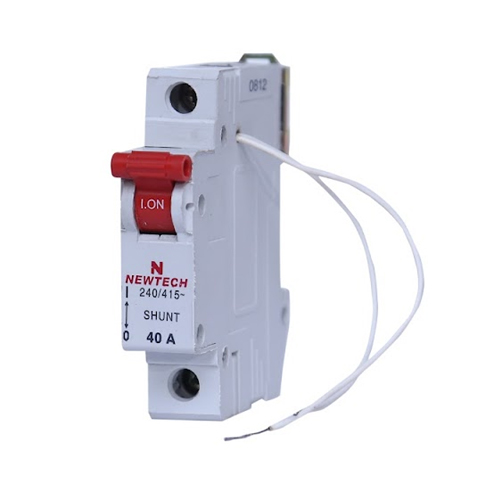

Shunt Trip

Technical Information

Standard Conformity IS/IEC 60947-3
Coil Consumption VA 6
Rated Voltage AC V 240
Frequency Hz 50
Operating Voltage range 70% - 110% of rated voltage
Electrical Endurance (Nos. of ops) 10000
Terminal Capacity (max) mm2 25
Protection Class IP-20 IS : 2147
Mounting Right side of MCB (Factory assembled)
Rated Current 40 A
The Shunt Trip Coil is short time rated and it trips the breaker instantaneously.
