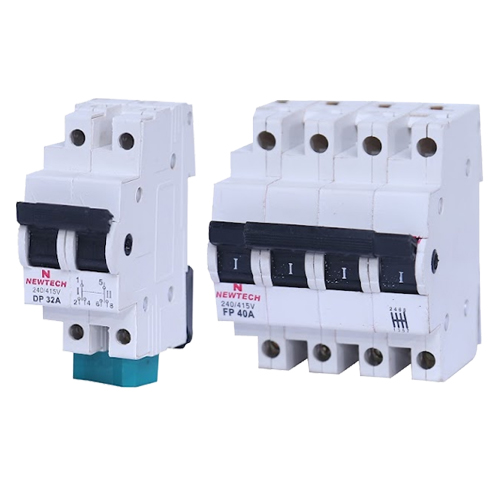

Miniature Changeover Switch

Salient Features
  • Compact in size.
  • Double break contacts
  • Special silver alloy contact tips
  • Shrouded terminals for safety.
  • Three stable positions ON-OFF-ON
  • Housing is made of non Hygroscopic fire retardent thermoplastic.
  • DIN Rail mounting with snap fixing.
  • Can be mounted with MCB, ELCB, Isolator in Distribution Boards.
Technical Information
Standard Conformity IS/IEC 60947-3
Rated Current 20 A, 25A, 32A, 40A
No. of Pole 2 Pole, 4 Pole
Rated Voltage 240 AC/415 V AC
Rated Frequency 50 Hz
Rated insulation voltage 660 V
Dielectric Strength 2.5 KV
Rated impulse withstand Voltage 6 KV
Utilization Category AC 21 A
Ambient Temp. -5 to +550C
Mechanical life 10000 operationsC
Electrical life 10000 operationsC
Mounting Standard DIN Rail - 35 mmC
Mounting Position Vertical/HorizontalC
Terminal Capacity (Cu) 10 mm2

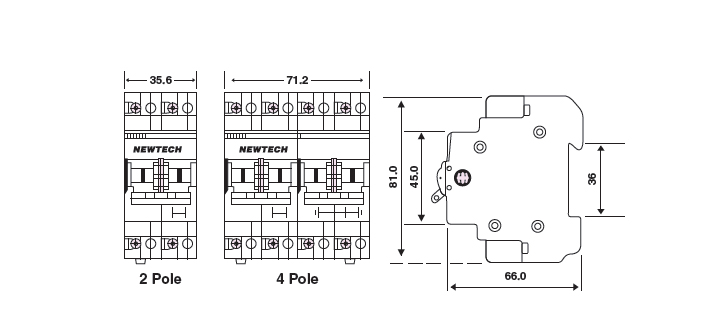

Dimension (in mm)
