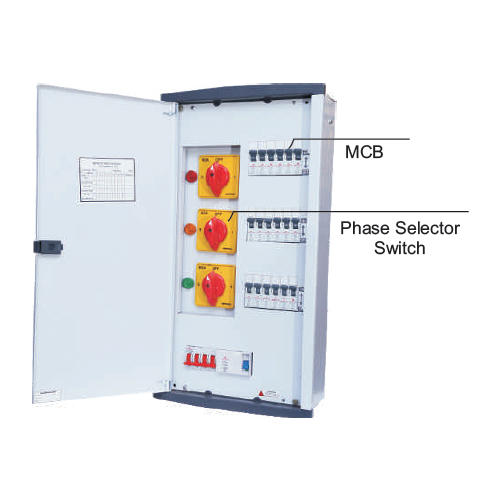

Phase Selector Vertical DB (Double Door)

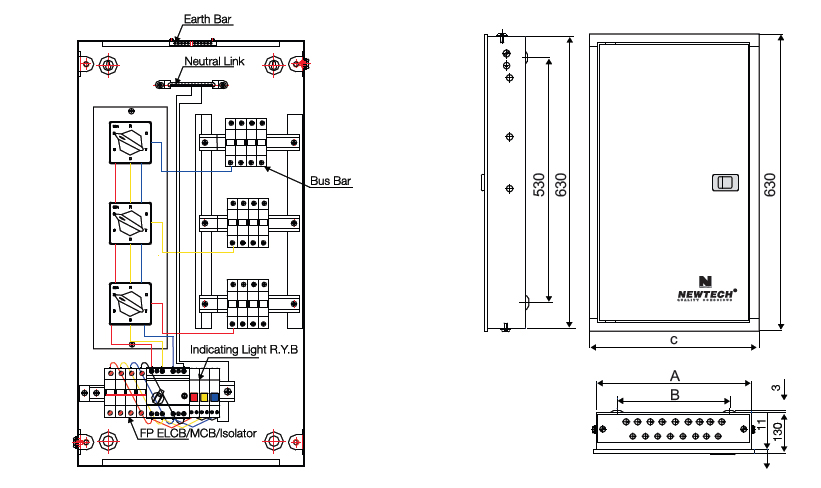

Dimensions (in MM)

No. of Ways	Capacity of 17.8mm Module Incomer+ Outgoing	Rating	Dimensions			Sheet Thickness (mm)
No. of Ways	Capacity of 17.8mm Module Incomer+ Outgoing	Rating	A	B	C	Sheet Thickness (mm)
4	8+12	32A. to 63A.	330	260	350	1.2
6	8+16	32A. to 63A.	330	260	350	1.2
8	8+24	32A. to 63A.	370	290	400	1.2

Request a Quote

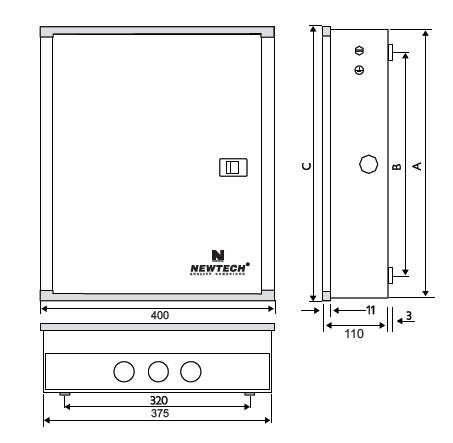

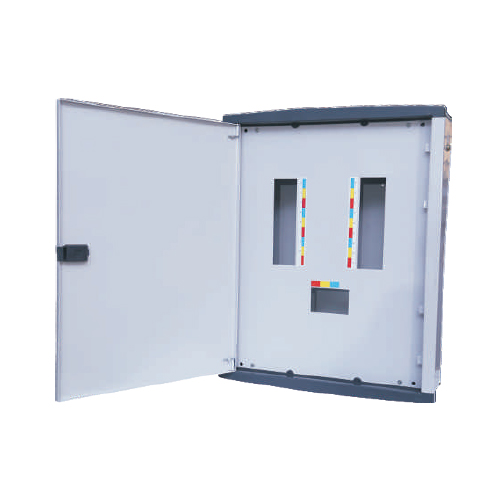

VERTICAL (A. Single Door) (B. Double Door)

No. of Ways	Dimensions			Sheet Thickness (mm)
No. of Ways	A	B	C	Sheet Thickness (mm)
4	430	350	460	1.2
6	480	400	510	1.2
8	530	450	560	1.2
12	640	570	670	1.2

Request a Quote

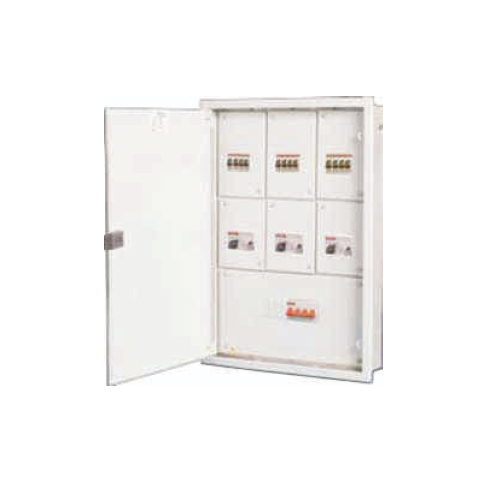

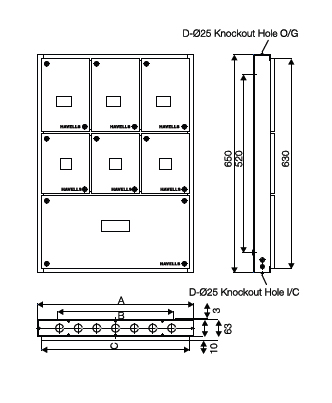

Seven Compartment DB

No. of Ways	Rating
4	8+(12+12)
6	8+(12+18)
8	8+(12+24)
12	8+(12+36)

Request a Quote

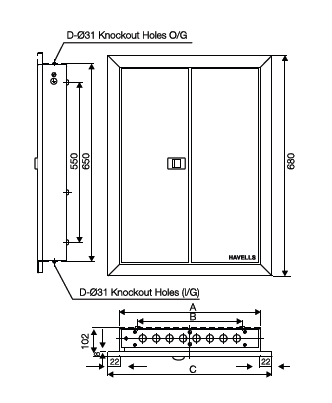

Double Door Dimension - (in mm)

No. of Ways	Dimensions			Sheet Thickness (mm)
No. of Ways	A	B	C	Sheet Thickness (mm)
4W	460	320	500	1.2
6W	560	428	600	1.2
8W	670	536	710	1.6
12W	890	752	930	1.6

Single Door Dimension - (in mm)

No. of Ways	Dimensions			Sheet Thickness (mm)
No. of Ways	A	B	C	Sheet Thickness (mm)
4W	450	320	430	1.6
6W	560	425	540	1.6
8W	670	535	650	1.6
12W	880	750	865	1.6
